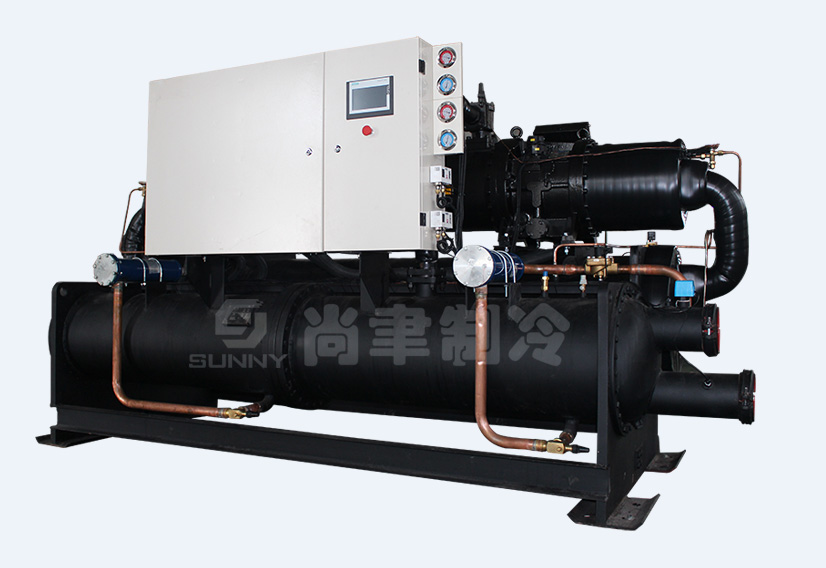

水冷螺桿式低溫機組技術參數（單壓縮機）-25℃
名義工況：冷凍水進／出水溫度-20℃／-25℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-27℃～-17℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用50%乙二醇或27%氯化鈣防凍液。
| SW- | | 機型 Type | 30ST | 40ST | 50ST | 55ST | 70ST | 75ST | 90ST | 95ST | 100ST | 110ST | 名義制冷量
Nominal cooling capacity | kW | 30.0 | 40.0 | 52.0 | 56.0 | 68.0 | 75.0 | 88.5 | 93.5 | 102.0 | 110.0 | | 104kcal/h | 2.6 | 3.4 | 4.3 | 4.7 | 6.0 | 6.4 | 7.3 | 7.7 | 8.6 | 9.5 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 19.5 | 25.5 | 32.0 | 36.5 | 44.0 | 48.4 | 54.4 | 57.3 | 63.0 | 68.8 | | 額定電流(A) Rated Current | 33.0 | 43.6 | 54.6 | 62.3 | 75.8 | 82.6 | 93.0 | 97.8 | 107.7 | 117.5 | | 能量調節 Energy regulation | 0-33%-66%-100% | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 6.4 | 8.5 | 10.6 | 11.7 | 14.8 | 15.9 | 18.0 | 19.1 | 21.2 | 23.3 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 47.0 | 47.0 | 48.0 | 50.0 | 50.0 | 52.0 | 52.0 | 54.0 | | 配管管徑(mm) Interface size | DN40 | DN50 | DN65 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 8.6 | 11.4 | 14.1 | 15.5 | 19.6 | 21.0 | 23.7 | 24.9 | 27.7 | 30.3 | | 水壓降(kPa) Water pressure drop | 35.0 | 35.0 | 46.0 | 46.0 | 47.0 | 48.0 | 48.0 | 50.0 | 50.0 | 50.0 | | 配管管徑(mm) Interface size | DN40 | DN50 | DN65 | DN80 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量(kg) Refrigerant volume | 7.7 | 10.2 | 14.1 | 15.4 | 19.2 | 20.5 | 23.0 | 24.3 | 26.9 | 29.4 | 外形尺寸
Overall dimensions | 長(mm) Length | 2450 | 2450 | 2700 | 2850 | 2850 | 2850 | 2850 | 3250 | 3250 | 3250 | | 寬(mm) Width | 660 | 660 | 660 | 890 | 890 | 920 | 920 | 920 | 960 | 985 | | 高(mm) Height | 1450 | 1590 | 1590 | 1600 | 1690 | 1690 | 1690 | 1690 | 1750 | 1750 | | 重量 weight | 機組略重(kg) Machine weight | 880 | 1080 | 1170 | 1290 | 1360 | 1440 | 1650 | 1720 | 1790 | 1860 | | 運行略重(kg) Operating weight | 1160 | 1360 | 1450 | 1620 | 1690 | 1770 | 1980 | 2140 | 2210 | 2280 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SW- | | 機型 Type | 120ST | 145ST | 155ST | 170ST | 180ST | 190ST | 220ST | 240ST | 260ST | 290ST | 名義制冷量
Nominal cooling capacity | kW | 122.0 | 145.0 | 153.0 | 168.0 | 182.0 | 187.0 | 220.0 | 241.0 | 258.0 | 290.0 | | 104kcal/h | 10.3 | 12.0 | 12.9 | 14.2 | 15.0 | 15.9 | 18.1 | 20.2 | 21.5 | 24.1 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 76.5 | 88.9 | 93.8 | 101.7 | 109.4 | 112.9 | 130.0 | 144.0 | 153.0 | 172.0 | | 額定電流(A) Rated Current | 130.6 | 151.7 | 160.2 | 173.5 | 186.8 | 192.8 | 222.1 | 246.4 | 261.7 | 294.2 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 25.4 | 29.7 | 31.8 | 35.0 | 37.1 | 39.2 | 44.5 | 49.8 | 53.0 | 59.4 | | 水壓降(kPa) Water pressure drop | 58.0 | 58.0 | 60.0 | 60.0 | 62.0 | 65.0 | 68.0 | 70.0 | 70.0 | 72.0 | | 配管管徑(mm) Interface size | DN80 | DN100 | DN125 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 33.4 | 38.9 | 41.3 | 45.2 | 48.2 | 50.6 | 58.1 | 64.8 | 68.8 | 76.7 | | 水壓降(kPa) Water pressure drop | 55.0 | 57.0 | 58.0 | 58.0 | 60.0 | 62.0 | 65.0 | 68.0 | 68.0 | 70.0 | | 配管管徑(mm) Interface size | DN100 | DN125 | DN125 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量(kg) Refrigerant volume | 32.0 | 38.4 | 39.7 | 43.5 | 47.3 | 48.6 | 56.3 | 62.7 | 67.8 | 75.5 | 外形尺寸
Overall dimensions | 長(mm) Length | 3250 | 3250 | 3250 | 3250 | 3250 | 3650 | 3650 | 3650 | 3800 | 3800 | | 寬(mm) Width | 1000 | 1050 | 1050 | 1050 | 1100 | 1130 | 1130 | 1250 | 1250 | 1300 | | 高(mm) Height | 1750 | 1752 | 1770 | 1770 | 1770 | 1870 | 1870 | 1870 | 1870 | 1950 | | 重量 weight | 機組略重(kg) Machine weight | 2090 | 2300 | 2570 | 2850 | 2900 | 3080 | 3430 | 3780 | 4210 | 4430 | | 運行略重(kg) Operating weight | 2510 | 2720 | 2990 | 3270 | 3370 | 3450 | 3630 | 3980 | 4580 | 4760 |
水冷螺桿式低溫機組技術參數（雙壓縮機）-25℃
名義工況：冷凍水進／出水溫度-20℃／-25℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-27℃～-17℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用50%乙二醇或27%氯化鈣防凍液。
| SW- | | 機型 Type | 60DT | 80DT | 100DT | 110DT | 140DT | 150DT | 180DT | 190DT | 200DT | 220DT | 名義制冷量
Nominal cooling capacity | kW | 60.0 | 80.0 | 104.0 | 112.0 | 136.0 | 150.0 | 177.0 | 187.0 | 204.0 | 220.0 | | 104kcal/h | 5.2 | 6.9 | 8.6 | 9.5 | 12.0 | 12.9 | 14.6 | 15.5 | 17.2 | 18.9 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 39.0 | 51.0 | 64.0 | 73.0 | 88.0 | 96.8 | 108.8 | 114.6 | 126.0 | 137.6 | | 額定電流(A) Rated Current | 66.0 | 87.2 | 109.2 | 124.6 | 151.6 | 165.2 | 186.0 | 195.6 | 215.4 | 235.0 | | 能量調節 Energy regulation | 0-16.5%-33%-...100% | 0-12.5%-25%-37.5%-...100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 12.7 | 17.0 | 21.2 | 23.3 | 29.7 | 31.8 | 36.0 | 38.2 | 42.4 | 46.6 | | 水壓降(kPa) Water pressure drop | 50.0 | 50.0 | 52.0 | 52.0 | 54.0 | 54.0 | 55.0 | 58.0 | 58.0 | 60.0 | | 配管管徑(mm) Interface size | DN50 | DN65 | DN80 | DN100 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 17.2 | 22.7 | 28.2 | 31.0 | 39.2 | 42.0 | 47.5 | 49.9 | 55.4 | 60.5 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 48.0 | 52.0 | 52.0 | 52.0 | 55.0 | 55.0 | 58.0 | | 配管管徑(mm) Interface size | DN50*2 | DN65*2 | DN80*2 | DN100*2 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量(kg) Refrigerant volume | 15.4 | 20.5 | 28.1 | 30.7 | 38.4 | 40.9 | 46.1 | 48.6 | 53.7 | 58.9 | 外形尺寸
Overall dimensions | 長(mm) Length | 3570 | 3570 | 3570 | 3570 | 3570 | 3570 | 3570 | 3570 | 3570 | 4100 | | 寬(mm) Width | 1050 | 1100 | 1190 | 1190 | 1240 | 1280 | 1320 | 1320 | 1380 | 1400 | | 高(mm) Height | 1530 | 1530 | 1540 | 1580 | 1650 | 1650 | 1650 | 1650 | 1700 | 2100 | | 重量 weight | 機組略重(kg) Machine weight | 1700 | 1900 | 2150 | 2350 | 2450 | 2650 | 3050 | 3100 | 3350 | 3800 | | 運行略重(kg) Operating weight | 2235 | 2485 | 2885 | 2985 | 3070 | 3420 | 3860 | 3910 | 4180 | 4430 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SW- | | 機型 Type | 240DT | 290DT | 310DT | 340DT | 360DT | 380DT | 440DT | 480DT | 520DT | 580DT | 名義制冷量
Nominal cooling capacity | kW | 244.0 | 290.0 | 306.0 | 336.0 | 364.0 | 374.0 | 440.0 | 482.0 | 516.0 | 580.0 | | 104kcal/h | 20.6 | 24.1 | 25.8 | 28.4 | 30.1 | 31.8 | 36.1 | 40.4 | 43.0 | 48.2 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 153.0 | 177.8 | 187.6 | 203.4 | 218.8 | 225.8 | 260.0 | 288.0 | 306.0 | 344.0 | | 額定電流(A) Rated Current | 261.2 | 303.4 | 320.4 | 347 | 373.6 | 385.6 | 444.2 | 492.8 | 523.4 | 588.4 | | 能量調節 Energy regulation | 0-12.5%-25%-37.5%-...100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 50.9 | 59.4 | 63.6 | 70.0 | 74.2 | 78.4 | 89.0 | 99.6 | 106.0 | 118.7 | | 水壓降(kPa) Water pressure drop | 62.0 | 64.0 | 64.0 | 64.0 | 65.0 | 68.0 | 68.0 | 70.0 | 70.0 | 72.0 | | 配管管徑(mm) Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 66.7 | 77.7 | 82.6 | 90.5 | 96.3 | 101.1 | 116.3 | 129.7 | 137.6 | 153.4 | | 水壓降(kPa) Water pressure drop | 60.0 | 60.0 | 62.0 | 62.0 | 63.0 | 65.0 | 65.0 | 68.0 | 70.0 | 70.0 | | 配管管徑(mm) Interface size | DN100*2 | DN125*2 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量(kg) Refrigerant volume | 64.0 | 76.8 | 79.3 | 87.0 | 94.7 | 97.2 | 112.6 | 125.4 | 135.6 | 151.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 4100 | 4100 | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 | 4900 | 4900 | | 寬(mm) Width | 1400 | 1400 | 1450 | 1500 | 1500 | 1500 | 1550 | 1550 | 1550 | 1550 | | 高(mm) Height | 2150 | 2150 | 2380 | 2400 | 2400 | 2400 | 2470 | 2470 | 2470 | 2470 | | 重量 weight | 機組略重(kg) Machine weight | 4050 | 4550 | 5350 | 6050 | 6150 | 6850 | 7150 | 8150 | 8250 | 8400 | | 運行略重(kg) Operating weight | 4670 | 5170 | 6050 | 6750 | 6785 | 7535 | 7835 | 8885 | 9085 | 9285 |
|
|
